F Connectors

This type is used in such applications as home television receivers for cable television (CATV) systems.

For Inquiries About This Products

  • TECH DATA

[ Crimp Plugs ]

ModelSuitable CableCenter PinSleeveBootDie SetStandard package
CanareOthers
FP-C25HDL-2.5CHD–BN1003BBN7129–TCD-35CA20 pcs / 100 pcs
FP-C3L-3C2VS, L-3C2VS, V*-3C–BN1002BBN7003ACB24TCD-35CA
FP-C31L-3C2W–BN1002BBN7011CB25TCD-31C
FP-C3FL-3CFB, V*-3CFB–BN1003BBN7003ACB24TCD-35CA

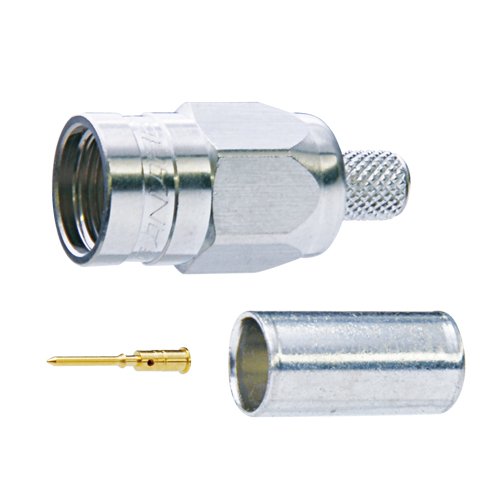

FP-C4LV-61S8241, 8279, RG-59B/UBN1003BBN7015ACB25TCD-4CA
TCD-451CA
FP-C4FL-4CFB, V*-4CFB1505A, 1505ANH, 8212, 8241F, 9167, 9259, 9659BN1004BBN7015ACB25TCD-4CA
TCD-451CA
FP-C5L-5C2VS, L-5C2V, V*-5C–BN1004BBN7016CB26TCD-35CA
FP-C52L-5C2W–BN1004BBN7014–TCD-451CA
FP-C53AL-4.5CHD1694A, 9066, 9116, 9118, 9248BN1005BBN7046CB26TCD-35CA
FP-C55A–1695A, 89120, 87120, 633948, 9116PBN1005BBN7045A–TCD-35CA
FP-C5FL-5CFB, V*-5CFB–BN1005BB75004ACB26TCD-5CF
TCD-55FA
FP-C71A–7731A, 9064, 9292, 1617A, 9011BN1041ABN7021A–TCD-7CA
FP-C7FAL-7CFB–BN1030ABN7021A–TCD-7CA

Key Features and Benefits

  • Lock mechanism improves reliability by preventing shifting or detaching of the center pin.
  • The tools and cable stripper can be used for the Canare crimp BNC plugs as well, thus saving on extra equipment.
  • VSWR of 1.1 or less up to 2 GHz.
  • Designed for indoor use.
Note

Be sure to use Canare Crimp Tool.

[ Standoff Receptacle ]

ModelDescriptionStandard package
FJ-JRJack to Jack20 pcs / 100pcs

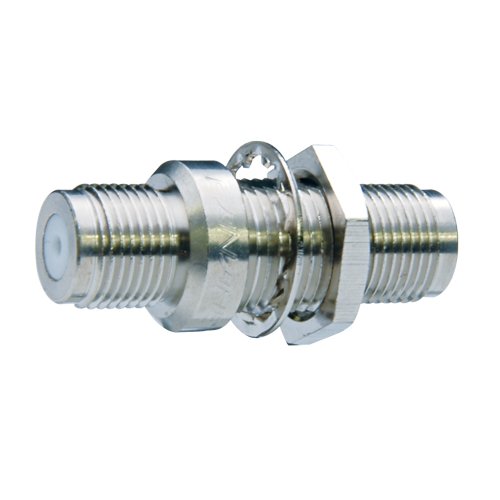

FJ-FPCPC Board Straight Mount

Key Features and Benefits

  • VSWR of 1.1 or less up to 2 GHz.
  • Accept insulation bushing IU-7/16.
FJ-JRU
Return loss for FJ-FPC and FJ-JR

[ Flush-mount Receptacles ]

ModelDescriptionFlange TypeStandard package
FJ-JRUJack to JackITT XLR-F7720 pcs
FJ-JRUDJack to JackNeutrik D
FJ-JRUDBJack to JackNeutrik D (Black)

Key Features and Benefits

  • Three types of flanges are available.
FJ-JRUD
Panel Mount Hole DimentionsPC Hole Dimentions
FJ-JRFJ-FPCFJ-FPC
